Great mechanical strength.
External coat protection resistant to UV rays, hot and cold water and abrasion due to weather and chemicals.
Good noise absorption.
Non-corroding.

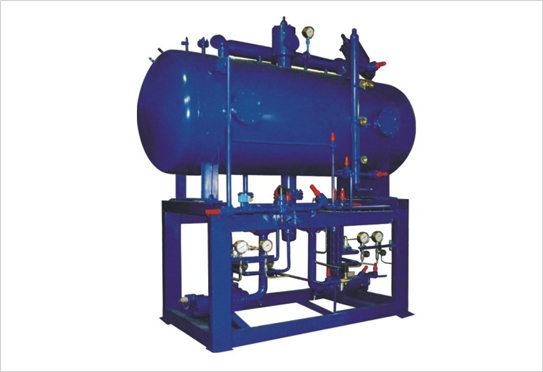

AMMONIA SYSTEMS
DETAILS
GS3 Engineering provides services for all aspects of industrial refrigeration and piping including initial design, installation, startup of new system, and maintenance of existing facilities. We stand behind our services with a highly trained, capable staff and the finest parts available. We use state of the art technology and currently hold multiple patented processes which are now widely used in the industry.
With our team’s years of experience in the industry, GS3 can assist you on all of your industry, GS3 can assist you on all of you industrial refrigeration applications.

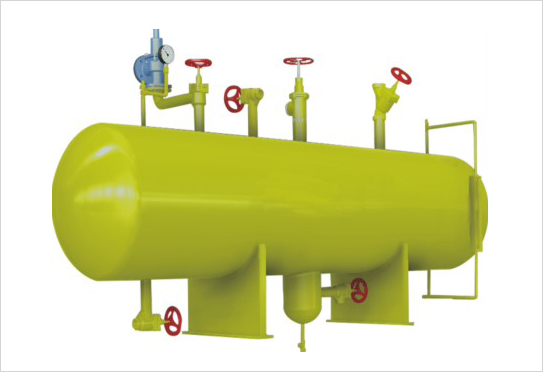

AMMONIA RECEIVER
| Dia |
50 mm to 1060 mm |
| Thickenss |
8 mm to 20 mm |
Testing |
600 psi |
Connections |
Complete with all connectins for ammonia lines |
Optional |
Pressure gaugeand reflex gauge glass
|
BENEFITS
- Energy Saving
- Easy Operation
- Low Maintenance
- Proper Distribution of Refrigerant
- Hot Gas Defrosting
- Protection of Compressor
- Minimum Discharge Pressure
- Zero Pressure Drop

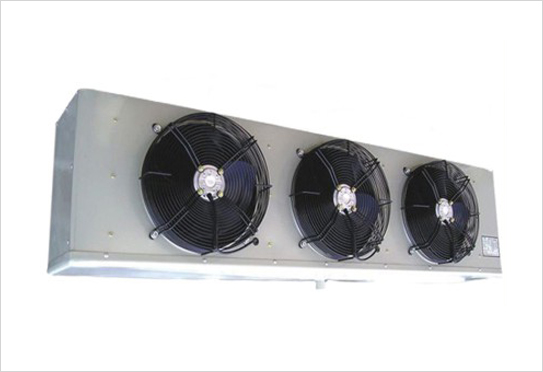

AMMONIA EVAPORATOR UNIT
Refrigerants |
Ammonia, brine & chilled water |
Capacity |
2 TR upto 30 TR ( Higher Capacity on request) |
Condensing Temperature |
+ 5 to -40 degree. |
Tube |
Stainless steel 304L grade 3/4 " O.D. 100 |
Fins |
psi tested. |
Fans |
Aluminium fins properly bonded with tubes 1 to 5 fans are availbale in different capacity (450 mm to 760 mm) with IP 55 insulation. Light weight axial flow fans with low power consumption. |
Casting |
G.I powder coated casing with channels arrangement for ceiling suspenison / foot mounting system with removable side covers |
Defrosting |
Hot gas / water defrosting arrangement in low temperature coil |
Testing |
All cols are pneumatic tested with 300 PSI |
Optional |
|
BENEFITS
- Light Weight
- Less Space Needed
- Low Pressure Drop
- Energy Saving
- Fast Cooling
- Power Saving
FEATURES
Structure and casing
Water basin (optional) and top cap
Filling material (or heat exchange surface)
Multi-blade axial fan
Anti- splash louvers on air intake openings

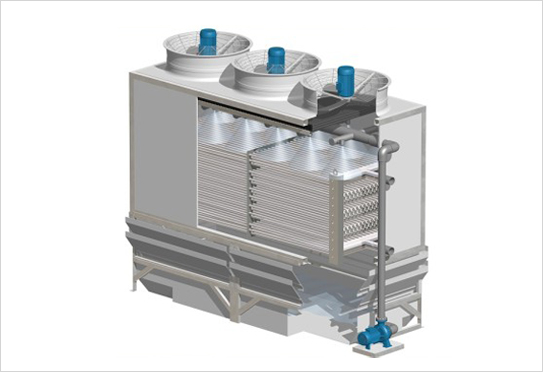

AMMONIA CONDENSER
Capacity |
10 TR to 300 TR |
Tube |
Stainless steel 304 L Tube 1000 psi tested |
Casting |
G.I powder coated body covers ( Removable body covers for easy maintenance) |
Fans |
Axial flow fans with aluminum adjustable blades IP 55 motor of kirloskar / Cromption / ABB |
Super heating System |
All condensers are with finned super heating system to increase the system efficiency |
Eliminators |
Elininators 300mm |
Sparay nozzles |
Special spary nozzles for equla distribution of water on tubes |
Pump |
Kirloskar / Crompton / Equivalent make monoblock pump for water circulation |
Optional |
Stainless steeel body covers. Golvanized ERW heavey duty MS tube |
